The previous frame I made was fine, but it didnt fit in the tent too
well, it seemed boxy and coffin-like. Because of the angle of the tent.
I was not using the headspace that I could have, so I re-designed my
frame to make a higher entry and using the shape of the tent as my guide.
These are my measurments, you can nip and tuck to suit your needs
or your cot size.
Supplies:
You will need 4 - 10ft pcs of 3/4" pvc pipe and fittings
10 "T's"
4 Elbows
4 End caps for legs

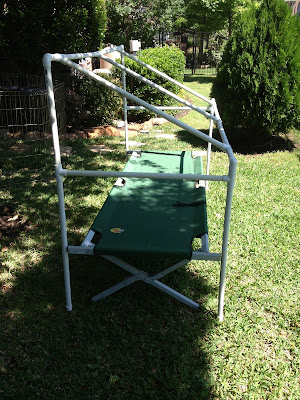

Completed Project
Ta-Da!!
I plan on hanging my tent fan and light from the middle
overhead crossbars
Picture #2
Picture #3
Cut a 2" pc of pvc to connect the elbow to the "t"
Directions
Mosquito Net PVC Frame
Cutting sizes:
Legs: 29" x 4
Top Leg Extension 18" x 2
End bars 30" x 2
Top Frame Assembly
horizontal pcs 25-1/2" x 4
horizontal pcs 5-1/2" x 4
Verticle Crossbar supports 34" x 3
and
to connect the "T" to the Elbows on the end you will
need to cut 2 pvc pieces 2". (see above picture#3 of the end assembly)
Hope you stay bug free!
